LogTag TRIX-8 Temperature Data Recorder w/ Calibration Certificate
SKU
TRIX-8-CAL
In Stock
$89.00
- -40°C to 85°C Temperature Measurement Range with ±0.5°C Accuracy
- 2 to 3 Year Battery Life @ 25 Minute Sampling Interval
- Customizable Alarm Settings and LED Indicators
- Designed with FDA 21 CFR Part 11 Digital Signatures
- Pre-Calibrated for Fast Shipping!
Includes ISO/IEC 17025:2017 Temperature Calibration Certificate @ 25°C

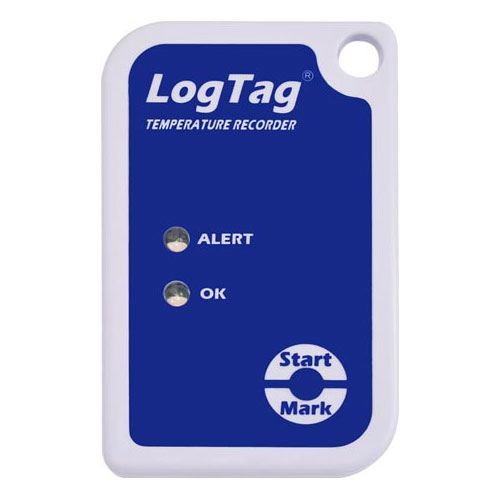

Overview of the LogTag Trix-8 Temperature Data Recorder
This multi-trip LogTag temperature recorder can accurately measure over a high range (-40 to 185 degrees Fahrenheit). It provides high-resolution readings and is highly versatile. It's housed in an extremely durable polycarbonate case and has a real-time clock for temperature readings with date/time stamps. Features include up to 3 years of battery life, customizable alarms, a lightning-fast download time and Standard 25C Temperature Calibration Certificate w/ Uncertainity Data.
User Manuals and Product Guides
Software Downloads
(Size: 72.12 MB)
Version 3.2.8 - Compatible with All LogTag Data Recorders
Application Notes
(Size: 0.27 MB)
How to Share LogTag Files with Multiple Users on a Windows Computer
LogTag TRIX-8 Temperature Data Recorder Specifications
| Temperature | Measurement Range: -40°C to 85°C Accuracy @ ±0.5°C: -20°C to +40°C Accuracy @ ±0.7°C: -30°C to -20°C; +40°C to +60°C Accuracy @ ±0.8°C: 60°C to 85°C Accuracy @ ±0.9°C: -40°C to -30°C Resolution < 0.1°C: -40°C to 40°C 0.2°C (40°C to 80°C) Resolution < 0.2°C: 40°C to 80°C Resolution < 0.4°C: 80°C to 85°C |
| Sensor Reaction Time | Typically less than 5 minutes (T90) in moving air. |
| Data Storage Capacity | 8000 Readings |
| Sampling Frequency | 30 Seconds to 18 Hours |
| Recording indication | Can be configured to flash when preset conditions are encountered. |
| Download Time | Typically with full memory (8000 readings) in less than 5 secs depending on computer or readout device used. |
| Standards Compliance | IP65 (Protected against dust and low pressure jets of water, similar to NEMA 13 rating ) |
| Power Source | 3 Volt Lithium Battery - Non-Replaceable |
| Battery Life | Typically 2 to 3 Years of Normal Use @ 15 Minute Sampling Interval and Monthly Data Downloads |
| Software Compatibility | Windows 11, 10 and 7 (32 and 64-Bit) |
| Calibration Certificate | Temperature Calibration w/ Uncertainty Data @ 25°C (Included) ISO/IEC 17025:2017 Calibration Certificate |
| Case Material | Polycarbonate |
| Standards Compliance | EC EMC directives (EN 50081-1:1992 & EN 61000-6-1:2001), FCC Part 15 Subparts A and B, EN12830:1999 for transport, storage and distribution of chilled, frozen, deep frozen, quick-frozen food and others. |
| Weight | 35g |
| Dimensions | 86mm x 54.5mm x 8.6mm (3.39" x 2.14" x 0.33") |
