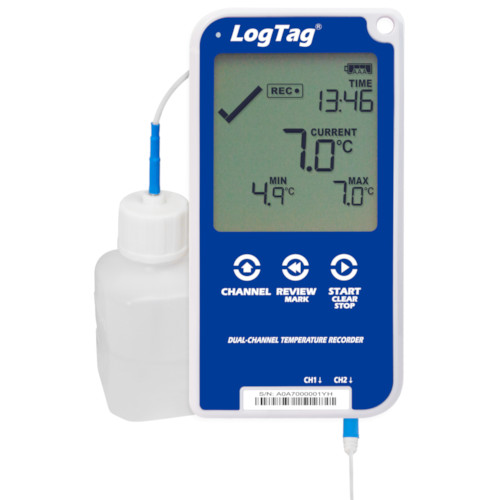

LogTag UTRED30 Vaccine Monitoring Kit
- Measures and Records Temperature Readings Ranging from -40C to 99C Using (1) ST100K-15 External Sensors
- Alarms can be programed individually for fridge and freezer allowing a single logger to monitor both a fridge and freezer simultaneously
- Powered by AC-Powered USB Plug and User-Replaceable AAA Alkaline Batteries with 1 Year Battery Life
- Stores Up To 32,000 Recorded Samples/Readings
- Audible Alarm with Red LED Signals for Temperature Excursions
- LCD Display for Current and 30-Day History
- Each Sensor Alarm Can Be Configured Separately for Fridge and/or Freezer
- Includes a NIST Traceable Calibration Certificate, Compliant to ISO/IEC 17025:2017
- Comes with a 2-Year Calibration Interval Unless Otherwise Stated by the Customer
- Data Loggers are Calibrated for Both Fridge (5°C) and Freezer (-15°C) Use
Includes UTRED30-16 Data Logger, (1) ST100K-15 External Probe w/ 60ml Glycol Bottle with 1.5 Meter Cable Length, Wall Mount Bracket (WMB-02), AC Adapter, (2) AAA Alkaline Batteries, Logger Installation Kit and NIST Traceable Calibration Certificate for Fridge and Freezer.
Overview of the LogTag VAC-UTRED30-KIT-1 Single Probe Vaccine Monitoring Kit
Our LogTag VAC-UTRED30-KIT-1 is a complete solution for monitoring vaccines stored in both refrigerators and freezers. The large easy to read display is designed to show ‘at a glance’ if temperature excursions have occurred during the current day and up to the previous 29 days. Alarms are customizable during configuration, which is handled by the powerful, easy to use, free LogTag Analyzer software. The logger can be AC powered using the included AC adaptor and USB cable as well as by 2 AAA batteries. The logger also features a backup coin cell battery.
At the heart of the kit is the LogTag UTRED30-16 logger which has inputs for two external probes allowing you to monitor both a fridge and freezer with a single device. The additional probes can be purchased separately or can be purchased as a kit with the VAC-UTRED30-KIT-2.
Additionally, the logger is compatible with the LogTag CP100 Smart Probes which allow you to swap out pre-calibrated probes without having to ship the logger back for re-calibration. We offer Smart Probe kits in both single probe, VAC-UTRED30-CP100-KIT, and dual probe, VAC-UTRED30-CP100-KIT-2 versions.
The kit includes everything you need to meet state health departments and the CDC for safe vaccine monitoring and storage. It includes the logger, sensor probe with glycol buffer bottles, calibration certificate, and mounting accessories.
LogTag UTRED30-16 Vaccine Single Sensor Data Recorder Specifications
| Temperature | Sensor Type: (1) Precision Thermistor Sensor: ST100K-15 with 1.5 Meter Cable Length Measurement Range: -40°C to 99°C (-40°F to 210°F) Accuracy (-20°C to 40°C): ±0.3°C (Typically) Accuracy (-40°C to -20°C): ±0.5°C (Typically) Accuracy (40°C to 70°C): ±0.7°C (Typically) Accuracy (70°C to 99°C): ±1.0°C (Typically) Resolution: 0.1°C or 0.1°F Reaction Time: Typically less than 2 Minutes (T90) in Moving Air (1 m/s) |
| Data Storage Capacity | 32,000 Total Recorded Readings/Samples (16,000 Per Sensor/Channel) |
| Sampling Frequency | 30 Seconds to 18 Hours |
| Alarms | (6) Individually Configurable Alarms for Each Sensor/Channel |
| Operating Mode | Push Button Start Specific Date & Time Optional Start Delay up to 72 Hours |
| Recording Indicators | Flashing "OK" Indicator Flashing "Alert" Indicator |
| Download Time | Typically with full memory (32,000 readings) in less than 20 secs depending on computer or readout device used |
| Standards Compliance | IP61, CFR21 Part 11, RoHS |
| Real Time Clock | Rated Accuracy: ±25ppm @ 25°C (Equivalent to 2.5 seconds/day) Rated Temperature Coefficient: -0.034 ±0.006ppm/°C (Typically ±0.00294 Seconds/Day/°C) |
| Power Source | AC Powered: 5 Volt Power Input from Micro-USB Cable Battery-Powered: (2) AAA User-Replaceable Alkaline Battery |
| Battery Life | Typically 18 Months of Normal Use @ 6 Minute Sampling Interval and Monthly Data Downloads |
| Operating Range | <Temperature: -30°C to 60°C (-22°F to 140°F) |
| Software Compatibility | Windows 11, 10 and 7 (32 and 64-Bit) |
| Case Material | Polycarbonate |
| EMC Compliance | Tested and complies with EC EMC directives (EN 50081-1:1992 & EN 61000-6-1:2001) Tested and complies FCC Part 15 Subparts A and B. |
| Weight | 156g with AAA Batteries (without External Probes) |
| Dimensions | 141mm x 72mm x 18mm |
