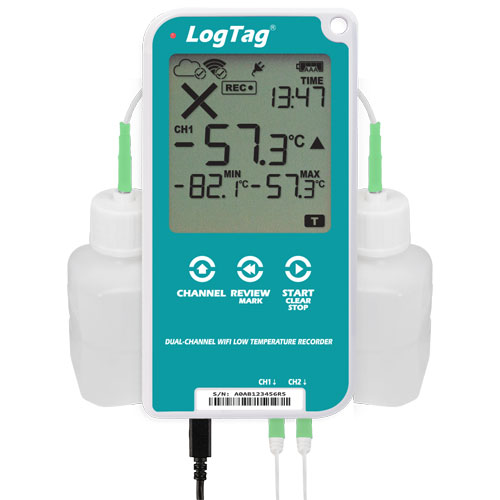

LogTag UTREL30 Dual Sensor Wireless Vaccine Temperature Monitoring System
- Monitors Vaccine Temperature in Fridges and/or Freezers from -90°C to 40°C Using 2 External Sensors
- AC Powered with AAA Alkaline and Coin Cell Battery as Backup
- Recorded Readings Automatically Upload to LogTag Online for Viewing Data on Any Browser/Device
- Stores Up To 16,129 Samples/Readings if LogTag Online Cloud is Not Available
- Audible Alarm with Red LED Signals for Temperature Excursions
- Download Data to LogTag Analyzer or PDF Document for Backup if Cloud is Unavailable
- New! LogTag Online Subscription Plans: Free (Sign up Directly at LogTag Online, No Activation Code Required), 1-Year and 2-Year Subscriptions (Refundable with 15% Restocking Fee)
Includes UTREL30-WIFI Data Logger, 2 x External Sensor Probes, Bases for Buffer Bottles, Wall Mount, AC Adapter, Calibration Certificate and (2) AAA Batteries.
Overview of the LogTag VAC-UTREL30-WIFI-KIT-2 Ultra-Low Temp Vaccine Monitoring Kit
Our LogTag VAC-UTREL30-WIFI-KIT-2 is a complete wireless solution for monitoring vaccines stored in ultra-low temperature freezers. This kit includes two individual sensors which can be independently configured for monitoring temperatures in two locations at the same time with a single device. This logger can store over 16k readings in memory and can record temperatures from -90°C to +40°C (-130°F to +104°F). The heart of the kit is the LogTag UTRED30-WFI which has WIFI connectivity to transmit your data wirelessly to the LogTag Online cloud-based service (paid service). When used with LogTag Online, the logger can transmit alarm notifications in the event of a temperature excursion or power failure. LogTag Online is a powerful platform allowing you to access your data from anywhere you have an internet connection.
The large easy to read display is designed to show ‘at a glance’ if temperature excursions have occurred during the current day and up to the previous 29 days. Alarms are customizable during configuration, which is handled by the powerful, easy to use, free LogTag Analyzer software. The logger is primarily AC powered, using the included AC adaptor and USB cable, and features backup power by 2 AAA batteries and coin cell battery.
The kit includes everything you need to meet requirements by state health departments and the CDC for safe vaccine monitoring and storage. It includes the logger, two probes with bead-filled buffer bottles, calibration certificate, and mounting accessories.
LogTag VAC-UTREL30-WIFI-KIT-2 Dual Sensor Vaccine Wireless Monitoring Kit Specifications
| Temperature | Sensor Type: Precision Thermistor (2) Sensor Compatibility: Compatibility with all LogTag ST100 Sensors Measurement Range: -90°C to 40°C (-130°F to 210°F) Accuracy (-20°C to 10°C): Better Than ±0.5°C Accuracy (-50°C to -20°C): Better Than ±0.7°C (Typically) Accuracy (-80°C to -50°C): Better Than ±1.0°C (Typically) Accuracy (30°C to 40°C): Better Than ±1.0°C (Typically) Accuracy (-90°C to -80°C): Better Than ±1.8°C (Typically) Accuracy (10°C to 30°C): Better Than ±0.7°C (Typically) Resolution (-90°C to -80°C): 0.2°C Resolution (-80°C to 10°C): 0.1°C Resolution (10°C to 20°C): 0.2°C Resolution (20°C to 30°C): 0.3°C Resolution (30°C to 40°C): 0.5°C |
| LCD Display | Day Summary Statistics Memory: Up to 30 Days of Max/Min/Duration and Alarm Trigger Statistics |
| Data Storage Capacity | 16,129 Readings/Samples |
| Sampling Frequency | 30 Seconds to 18 Hours |
| Operating Mode | Push Button Start Specific Date & Time Optional Start Delay up to 72 Hours |
| Recording Indicators | Flashing "OK" Indicator Flashing "Alert" Indicator |
| Download Time | Typically with full memory (16,129 readings) in less than 10 secs Depending on Computer or Readout Device Used |
| Standards Compliance | IP51, CFR21 Part 11, RoHS |
| Power Source | External Power: Standard AC Power Adapter or USB Cable Internal Power (Backup): (2) AAA Alkaline Batteries and CR2032 Lithium (LiMg) Coin Cell Battery, User Replaceable |
| Battery Life | Battery is for backup power only. Typical battery life is up to 2 months. |
| Communications Interface | Wireless: IEEE 802.11 b/g/n/ac (2.4) WPA/WPA2 Security USB: 2.0, Micro USB Plug |
| Operating Range | Temperature: -30°C to 60°C (-22°F to 140°F) |
| Software Compatibility | Windows 11, 10 and 7 (32 and 64-Bit) |
| Case Material | Polycarbonate |
| EMC Compliance | Tested and complies with EC EMC directives (EN 50081-1:1992 & EN 61000-6-1:2001) Tested and complies FCC Part 15 Subparts A and B. |
| Weight | 134g (without External Probe and AAA Batteries) |
| Dimensions | 141mm x 72mm x 18mm |
