LogTag UTRED-16F Vaccine Monitoring Kit for Transporting Vaccines
- -40°C to 99°C Temperature Measurement Range with ±0.5°C Accuracy
- Stores up to 16,129 Recorded Readings onto Internal Memory for Download to PC
- LCD Display Shows Current Recorded Temperature, Logging and Battery Status
- 2 Year Typical Battery Life
- Direct USB Connection to PC Computer; Docking Station Not Required
- Can Generate a Fully Detailed PDF Report without Special Hardware
- NOTE: Not Designed for VFC Vaccine Monitoring (No Audible Alarm)

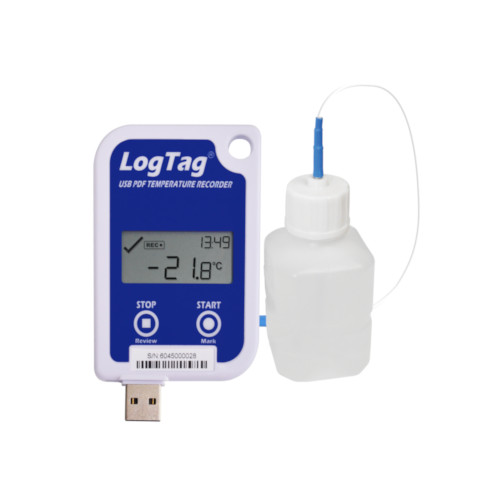

Includes UTRED-16F Data Logger, ST100K-15 External Probe w/ 60ml Glycol Bottle with 1.5 Meter Cable Length, Wall Mount Bracket and NIST Traceable Calibration Certificate for Fridge and Freezer.
Overview of the LogTag UTRED-16F Vaccine Transportation Kit
Our VAC-UTRED-16F-KIT is the perfect solution for monitoring vaccines during transport. The kit features the LogTag UTRED-16F logger that when plugged into a computer automatically generates a detailed PDF report. The integrated display shows recording status, current temperature, alarm status of up to six user-configurable alarms and the duration of any temperature excursions. In addition to the logger this economically priced vaccine monitoring kit includes an ST100k-15 external temperature sensor, Glycol buffer bottle with bottle base, wall mount, and calibration certificate from our in-house ISO 17025:2017 accredited lab.
Note: Because this logger doesn’t have an audible alarm it is not recommended that it be used as a primary digital data logger for the Vaccines for Children Program (VFC).
Logtag UTRED-16F Vaccine Transportation Data Logger with External Probe Specifications
Temperature | Measurement Range: -40°C to 85°C Accuracy @ ±0.5°C: -20°C to +40°C Accuracy @ ±0.8°C: -40°C to -20°C and 40°C to 70°C Accuracy @ ±1.2°C: 70°C to 99°C Resolution: 0.1°C (0.1°F) |
Data Storage Capacity | 16,129 Readings |
Sampling Frequency | 30 Seconds to 18 Hours |
Start Modes | Push Button Start, Specific Date and Time or Delay up to 72 Hours |
Recording Indicator | "REC" Symbol on LCD |
Download Time | Typically with full memory (16,129 Readings) in less than 30 seconds from time of insertion to availability of PDF Report |
Standards Compliance | IP61 (When Vertically Mounted or Hung with USB Dust-Cap in Place) |
Power Source | CR2450 Lithium Battery - Non-Replaceable |
Battery Life | 2 Years Dependent on Sampling Rate, Number of Downloads (2 Year Shelf Life before Use) |
Real Time Clock | Rated Accuracy ±25ppm @ 25°C (Equivalent to 2.5 Seconds/Day) Rated Temperature Coefficient is -0.034 ±0.006ppm/°C (Typically +/- 0.00294 Seconds/Day°C) |
Connection Interface | USB 2.0, A Type Plug |
Software | PDF Reader or LogTag Analyzer 3.1.9 or Higher |
Software Compatibility | Windows 11, 10 and 7 (64-Bit and 32-Bit) |
PDF Report | 1 Page Report with Trip and Alarm Summary. Multi-Page Report with List of Readings, including date and time |
Case Material | Polycarbonate |
Weight | 39g |
Dimensions | 93mm x 54.5mm x 8.6mm (3.66" x 2.14" x 0.33") including protective USB cap |
